Pluribus V
Features REFLEX row-by-row, automated hydraulic down-force strip tillage unit
Level up your workflow

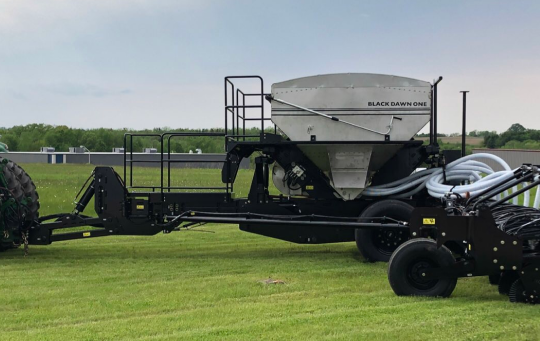

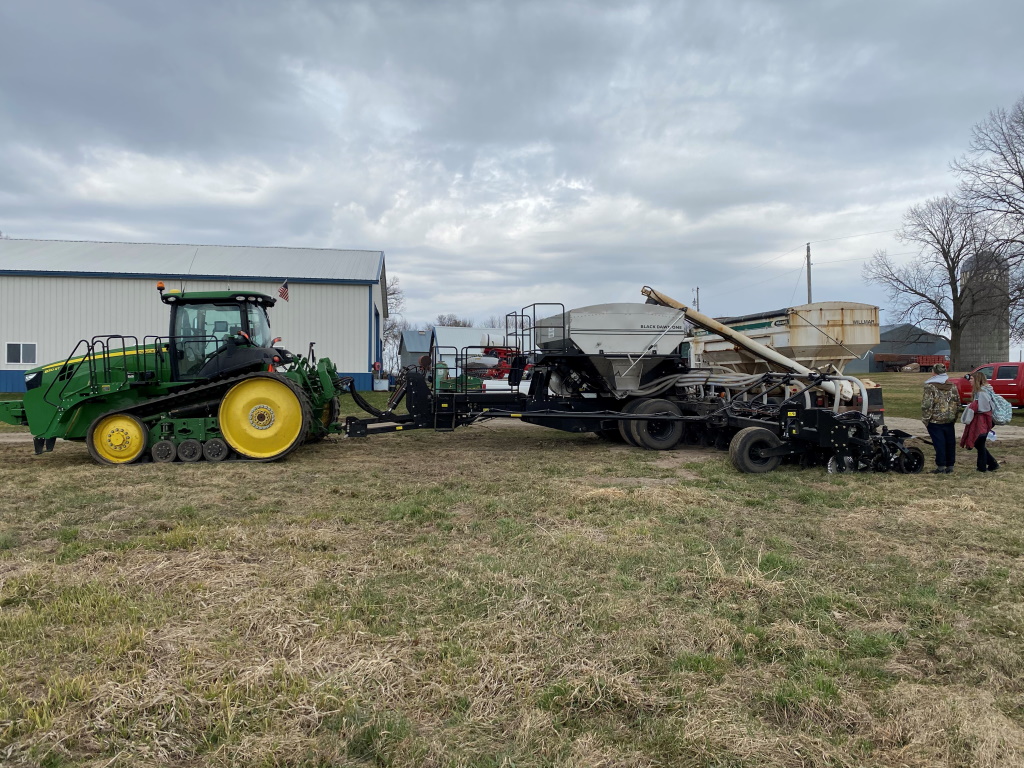

Black Dawn One is a complete pull-type strip-till tollbar and fertilizer delivery system. It features a stainless steel 9-ton fertilizer tank
9 Ton Stainless Steel Fertilizer Hopper with Catwalk and Ladder

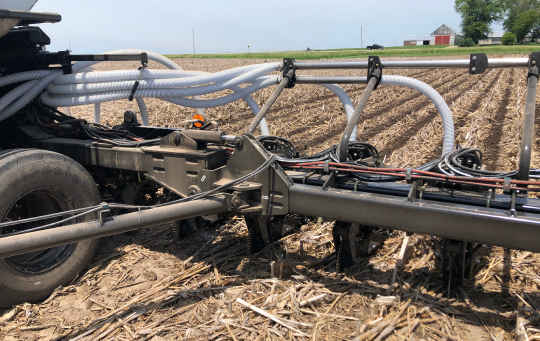

Stainless steel tubes are mounted directly over the top of the toolbar, and terminate at each row
High Output Fertilizer Meter
Fertilizer meter and fan assembly designed to keep up with the high speed performance of the Pluribus V Row Unit
Hydraulic Wing Weight Transfer
Black Dawn One was designed, from day one, to include hydraulic wing weight transfer. A critical element for consistent performance across all rows

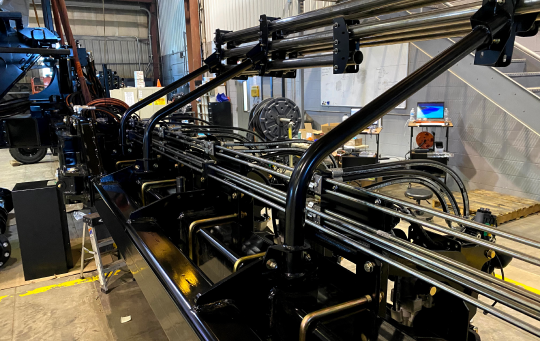

Steel Row to Row Hydraulic Lines
Keeps a clean and simple layout to the toolbar

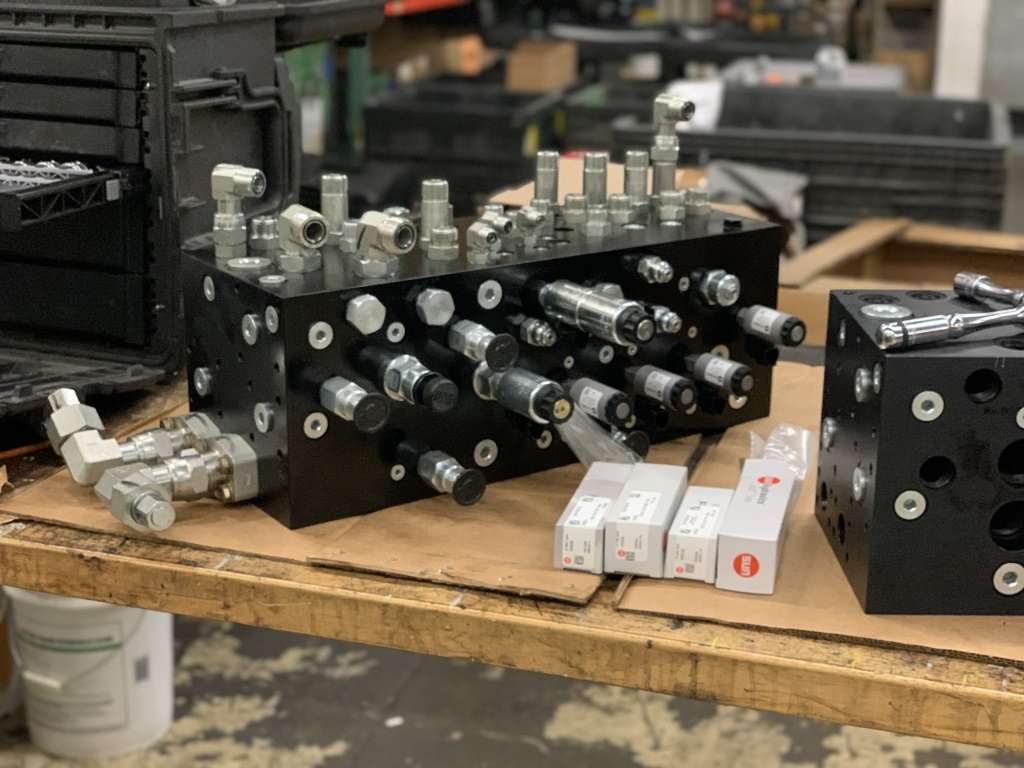

Intergrated Hydraulic Manifold and Control Panel
The entire toolbar and fertilizer system is run off of power beyond with only two hoses, simplifying the connection to the tractor and eliminating the need for a large number of remote valves

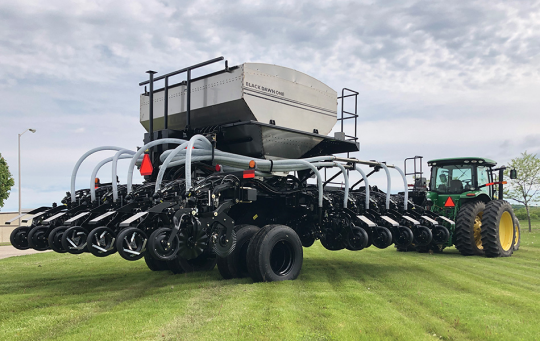

Designed for 24 Rows
High strength toolbar design. Made to handle up to 700 horsepower
Easy to Fill
The wide opening at the top of the fertilizer hopper and the protective bar allows the hopper to be easily filled by a single operator with less than perfect fertilizer trucks
Watch in Action
For more in depth videos on our products, checkout our Youtube account or contact us for more details!
Folding Sequence
Rocky Conditions
View From the Cab
Integration with FurrowTechnik
View from Above
Use in Almost Any Residue Condition

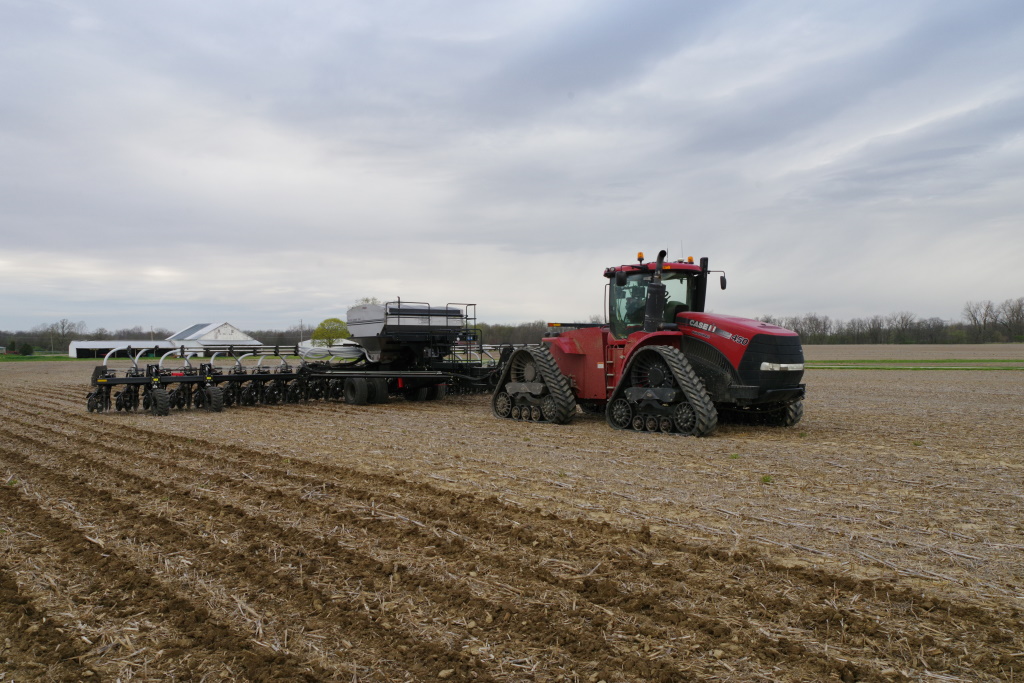

24 Row system on Quad Trak

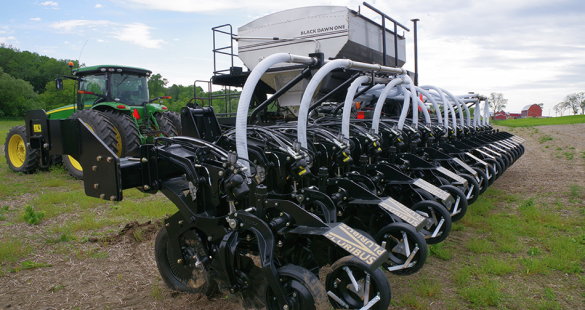

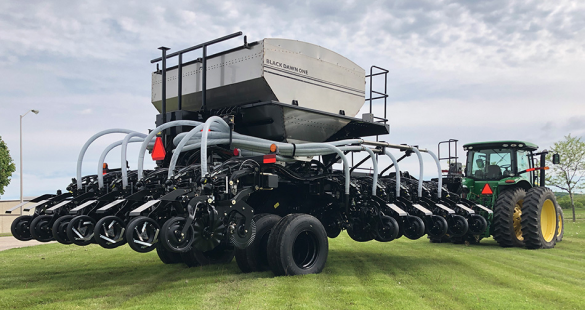

Choose your best fit
Black Dawn One comes in two different configurations. Our team will help you configure the perfect fit for your farmland and workflow
40' / 16 rows
Transport Height
13.5'
Transport Length
38.5'
Transport Width
18'
Row Unit Clearance
38"
Hitch Clearance
11"
Empty Weight
~35,000 #
Tongue Weight
~5,200 #
Fertilizer Output
~800 #/ac @ 5mph
Power Min
300 HP
Pressure Max
3,000 PSI
Flow Min
~50 GPM
60' / 24 rows
Transport Height
13.5'
Transport Length
43.5'
Transport Width
18'
Row Unit Clearance
38"
Hitch Clearance
11"
Empty Weight
~42,000 #
Tongue Weight
~12,600 #
Fertilizer Output
~800 #/ac @ 5mph
Power Min
360 HP
Pressure Max
3,000 PSI
Flow Min
~55 GPM
