Lifetime Guarantee Against Trashwheel Bending or Breaking

The simple screw-adjust mechanism allows you to fine tune your row cleaning.



The Trashwheels shown here have our new magnetically retained handle. It can be adjusted by hand, or with a 3/4" socket.

The Industry's Best Hub

All Dawn hub housings, equipped with Timken tapered roller bearings, are castle nutted to our nitride coated shaft. Dawn hubs are regreaseable. Simply grease until clean grease pushes past the triple-lip seal. Dawn 15" trashwheel integrated hubs use the same bearings and seals found in the standard hub. Trashwheels are mounted between the housing and our o-ring sealed Supercap.

floating Row Cleaner

Floating Trashwheels

If you will be using your planter primarily to plant into bean stubble, Floating Trashwheels equipped with depth bands generally work very well. Depth bands are used most often if you will be working your ground. In most cases, however, especially if your ground is flat or rolling hills, you may want to look at a rigid row cleaner, that hugs tight to the V-opener blade like our standard Dawn Trashwheels

Floating Row Cleaner
Dawn 12.75 Trashwheel

Dawn 12.75" Trashwheel

The 12.75" Trashwheel Row Cleaner has a swept-back tooth. It works very well in a wide variety of tillage conditions. This wheel is ideal for running in conventionally tilled ground, where it allows residue and clods to slough off as the teeth exit the ground. It also prevents wrapping when running no-till into wheat stubble. The John Deere 1770NT, 1780, 1790, DeereBauer, White 8000 series, and Case 1250 series planters have limited clearance for planter attachments. For these planters you will likely use the 12.75" wheel, as the 14" Trashwheel can only run intersecting, or not at all, on those planters.

Dawn 14 Trashwheel

Dawn 14" Trashwheel

This is the original Dawn Drop-Forged Alloy Steel Trashwheel. The 14" Trashwheel Row Cleaner is designed to aggressively bite into trash, and is commonly used in a no-till or min-till environment. The standard row cleaner can have the wheels running in the intersecting or offset positions. If you have worked bottoms, or other difficult ground that required some tillage, you may choose to run the Trashwheels in the offset position. For No-till, they are generally run in the intersecting position. Please make sure your planter has adequate clearance to run the 14" Trashwheel.

floating Row Cleaner

Bayonet Stripper (Optional)

Part No. 102593 (Right) and 102594 (Left)

Optional Bayonet Stripper. In some conditions, you may elect to use our bayonet stripper. It is heavier, and more agressive than our standard triangular stripper, and is good if you are having difficulty with bale wrap, or no-tilling into long tough residue, such as stripper headed wheat.

1130A Configurations

Dawn Trashwheels can be configured in a variety of different ways. The three most common are shown below. 14" Trashwheels can be set intersecting, or offset right and left. 12.75" Trashwheels can only run in the offset position. John Deere, Kinze and White planters will use an A series stem (exe. 1130A-14, 1136A-12.75). Case planters require the use of the C series stem (exe. 1130C-12.75, 1136C-14). These configurations are best for 28" or greater spacing. Ideal for 30" centers.

floating Row Cleaner

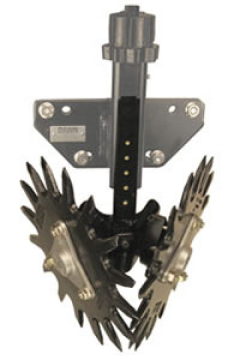

1130A-14 Intersecting

floating Row Cleaner

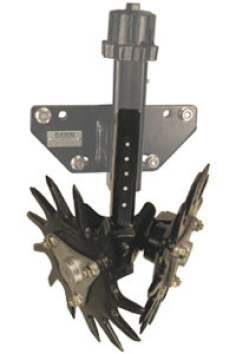

1130A-14 Offset

floating Row Cleaner

1130A-12.75 Offset

For John Deere Planters

If you have a early John Deere 7200 "Conservation" planter with a welded lower parallel linkage, spatial constraints make it impossible to fit to your planter, unless you replace your lower parallel links. The 1140W-1 and the 1140-1 are both compatible with the John Deere 7200, but are not compatible with the 1700 series John Deere.

Floating Row Cleaner

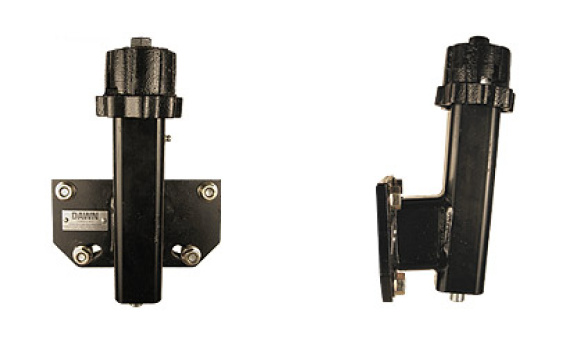

1140-2, 2.25” Support Arm

The standard Plus, XP and Pro mount: 1140-2, has an angled support arm that places the depth-adjust tube 2.25" out from the faceplate of the planter row unit. This is the mount you would use, in general, to equip John Deere planters 7200 or newer. There are some important exceptions to this.

Floating Row Cleaner

1140-2sp3.25, 3.25” Support Arm

If you have a John Deere planter that has been equipped with John Deere "Heavy-Duty" Scrapers, you will have to use the mount 1140-2-3.25. This gives another inch of clearance to avoid interference with the scraper mount.

Floating Row Cleaner

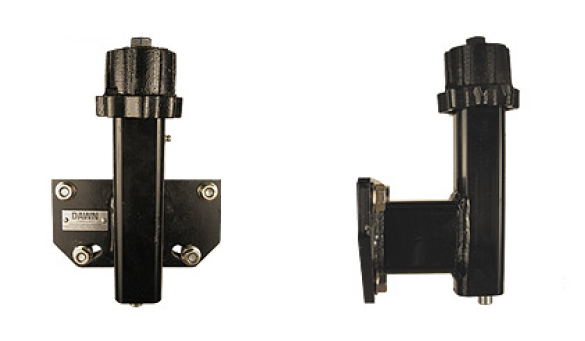

1140-2sp6.25, 6.25” Support Arm

If you have ANY row units with "Long Parallel Links" You must use the 1140-2-6.25 mount. Long parallel links come standard on the front four center rows of the JD 1790 split-row. Many other DB & 1700 series are equipped with long parallel links, please verify your links package. Dawn will not be liable for any freight or extra cost associated with returns.

Floating Row Cleaner

1140-5, .625” Support Arm

If you have a John Deere 7000, you will have to order mount 1140-5 to avoid interference with the cross member of the lower parallel arms of the the planter row unit, the 1140-5 has a support arm of only 5/8".

For Kinze Planters

If you have a pre-1993 Kinze planter or a Kinze planter with John Deere MaxEmerge row units you will have to order the 1140-5 mount. This mount will only fit pre-1993 Kinzes and JD 7000's.

Floating Row Cleaner

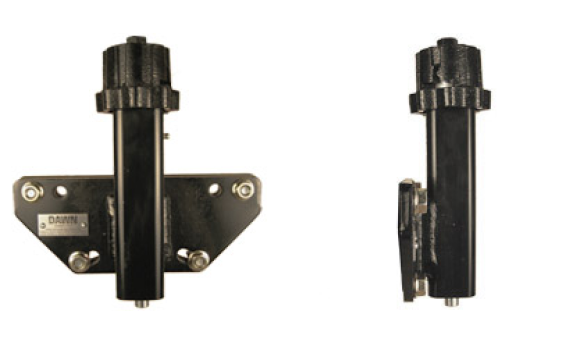

1140-1, Wide Back Plate

The 1140-1 mount is the standard mount for Kinze planters with spring down-pressure. The 1140-2 Mount is also compatible with the John Deere 7200 and White 6000 series planters.

For White Planters

If you have a pre-1993 Kinze planter or a Kinze planter with John Deere MaxEmerge row units you will have to order the 1140-5 mount. This mount will only fit pre-1993 Kinzes and JD 7000's.

Floating Row Cleaner

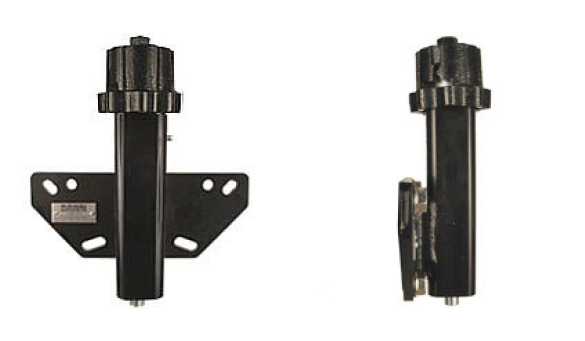

1140W-1, Slotted Back Plate

The 1140W-1 mount is the standard mount for White 6000 and early White 8000 planters. The 1140W-1 mount is also compatible with the JD 7200 and post-1993 Kinze planters.

This mount has a slotted hole in both of the upper corners of the back plate. This slot is necessary to bolt to White 6000 and early 8000 planters. We do not offer a mount compatible with the White 5000 series planters

Floating Row Cleaner

1140W-5, White 8000

If you will have a post-2010 White 8000 series planter, you can equip your planter with Trashwheels using the 1140W-5 mount. This mount keeps the screw adjust mechanism clear of the lower parallel linkage cross support.

An American Classic for 30 Years

The Dawn TrashWheel Row Cleaner has existed for 30 years and is a timeless staple of American farming. The quality of the forged wheel and hub, and tapered roller bearings stand apart in an industry increasingly populated with throw away products. In the old days the founder of Dawn, Jim, would throw the toothed wheel into the air, letting it land on concrete to demonstrate the strength.


Watch in Action

We haven't uploaded any videos of this product at this time, but please checkout our Youtube channel for other in-depth videos on our various products!

Will it fit?

If you would like to know if this product fits on your existing equipments, please fill out the quick form and we will be in touch with lighting speed
